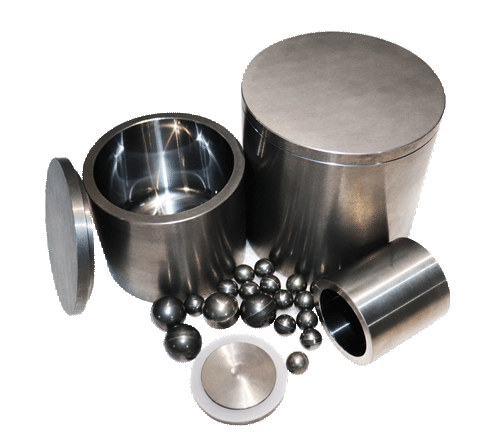

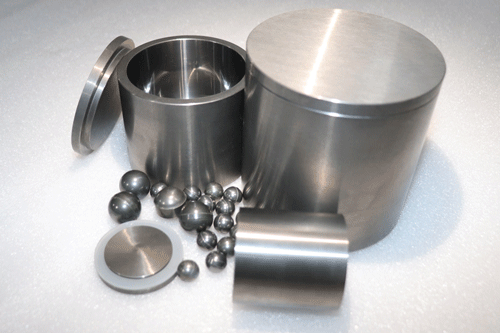

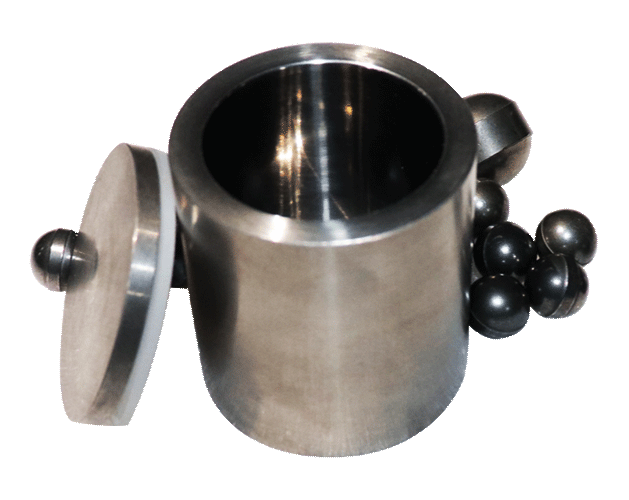

Tungsten carbide planetary mill jar

A cemented-carbide milling jar for evaluating hard materials and applications that need a hard working surface.

Discuss this configuration Test your material

Overview

A cemented-carbide milling jar for evaluating hard materials and applications that need a hard working surface. The carbide grade, binder and loaded mass must be confirmed for the intended sample and mill.

How it works

The jar working surface forms part of the contact system between sample, media and mill. Material selection should balance the required mechanical action with chemical compatibility and the acceptable contribution from wear.

Wear can introduce tungsten and binder constituents. A hard material is not wear-free, and binder chemistry may be important for the sample.

Key features

The catalog describes a carbide material with a metallic binder.
The catalog lists a 50–2000 mL reference range.
Confirm the drawing, complete mass and binder grade for the selected jar.

Specifications

Published catalog references are reproduced below. Nominal volume is not a sample-mass rating. Confirm the selected model, material grade, electrical supply and complete supplied configuration in the quotation.

Carbide jar selection reference
Item	Reference / confirmation needed
Working material	Cemented carbide; confirm tungsten-carbide and binder grade
Catalog nominal-volume reference	50–2000 mL
Dimensional drawing	Request the drawing for the selected volume and construction
Binder / grade	Confirm against sample contamination requirements
Complete jar mass	Confirm for the selected volume and mill holder
Lid, seal and vacuum proposal	Configuration-specific; no pressure rating inferred

Applications

Hard mineral, carbide and other demanding powder-processing studies where the working material is compatible.

Suitability depends on the actual sample, process and analytical requirements; a listed application is not a guaranteed final-particle-size result.

Accessories and options

Request a confirmed drawing, carbide/binder grade, jar mass, lid and clamping arrangement for the selected volume.

State the required grade, quantities, drawings and destination when requesting a quotation. Confirm what is included, the document requirements, packing and commercial terms; no generic delivery time or universal custom capability is assumed.

Compare milling jars · Compare grinding media · Low temperature planetary grinding machines · Ultrasonic planetary ball mills

Selection guidance

Match cemented tungsten carbide to the sample chemistry and the elements or residues that matter to the analysis. Then confirm the dimensions, complete loaded mass and operating arrangement against the selected mill.

Work through the selection guide · Request a configuration quotation

Trials and comparisons

Material/application reference

Pyroxene mineral

XQM; exact model not recorded · Dry milling with carbide jar/media

Sample: 238 g
Jar: 500 mL cemented-carbide jar
Recorded sampling / duration: 30 min

Recorded observations
Observation	Sampling time	D50 (µm)	D90 (µm)
Carbide-jar sample	30 min	7.63	28.00

Severe settling/caking was recorded. An earlier steel-jar run used a different charge and a separately received sample, so it is not a controlled carbide-versus-steel comparison. Carbide/binder grade and jar part number were not recorded.

How to plan a fair comparison

For a cemented tungsten carbide comparison, use matched sample portions and the same measurement/dispersion method. State the jar, media, mass/volume loading basis, processing schedule and contamination measurements. A change in material grade alone is not established as the cause of a result.

These anonymous records are not operating instructions. Measurement and dispersion methods are not fully specified in the test summaries; results apply to the reported samples and conditions.

Discuss a matched sample evaluation

Product FAQs

Which drawing is needed to confirm the jar fit?

Request the drawing for the selected volume and construction. Check external diameter, complete lid-inclusive height, clamping geometry, jar mass and carbide/binder grade against the intended mill.

Which cemented tungsten carbide jar size will fit my mill?

The catalog describes a carbide material with a metallic binder. Check external diameter, complete lid-inclusive height, holder/clamp geometry and loaded mass. Request a confirmed drawing, carbide/binder grade, jar mass, lid and clamping arrangement for the selected volume.

Can this jar be filled to its nominal volume with sample?

No. Allow space for media and material movement, and check the permitted loaded mass. Wear can introduce tungsten and binder constituents. A hard material is not wear-free, and binder chemistry may be important for the sample. Agree the charge for the actual cemented tungsten carbide jar and process.

How should I choose the matching grinding media?

Consider the sample chemistry, the jar working material, contamination limits and the required result. Wear can introduce tungsten and binder constituents. A hard material is not wear-free, and binder chemistry may be important for the sample. Confirm the complete pairing before specifying a diameter mix or media charge.

Can a custom size, lid or vacuum version be requested?

Request a confirmed drawing, carbide/binder grade, jar mass, lid and clamping arrangement for the selected volume. A proposed custom feature is subject to engineering confirmation and is not automatically included with a standard jar.

What trial evidence is available for this jar material?

Pyroxene mineral: XQM; exact model not recorded, 238 g in 500 mL cemented-carbide jar, 30 min. Severe settling/caking was recorded. An earlier steel-jar run used a different charge and a separately received sample, so it is not a controlled carbide-versus-steel comparison. Carbide/binder grade and jar part number were not recorded. A material-family observation does not certify the supplied part or grade.

Start with your sample.

Nominal capacity, jar volume and usable sample load are different. Confirm the model, jars and electrical requirements with our engineers.
