WXQM-(2–6) compact configuration

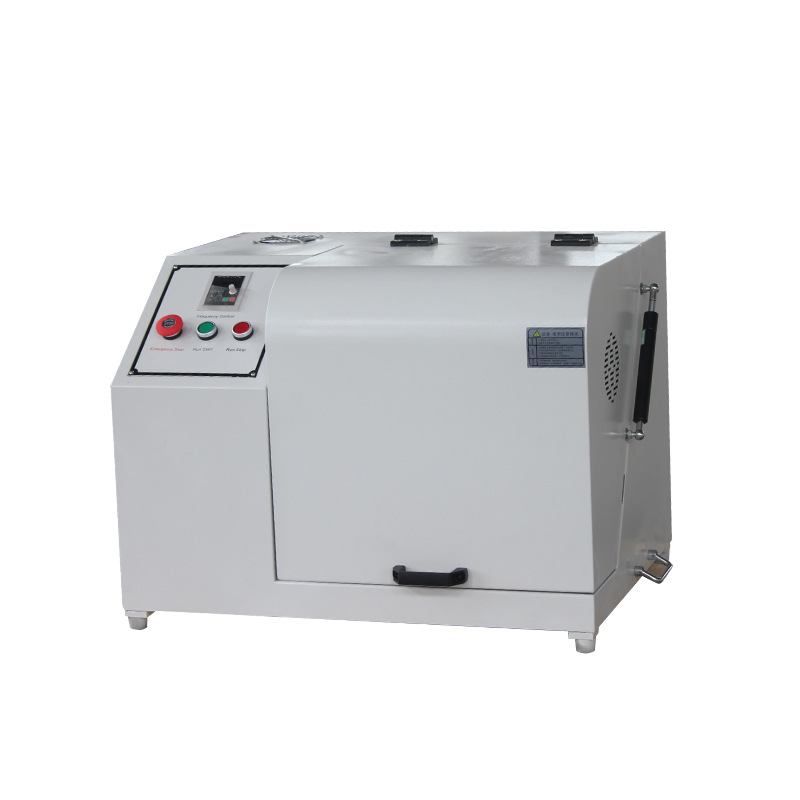

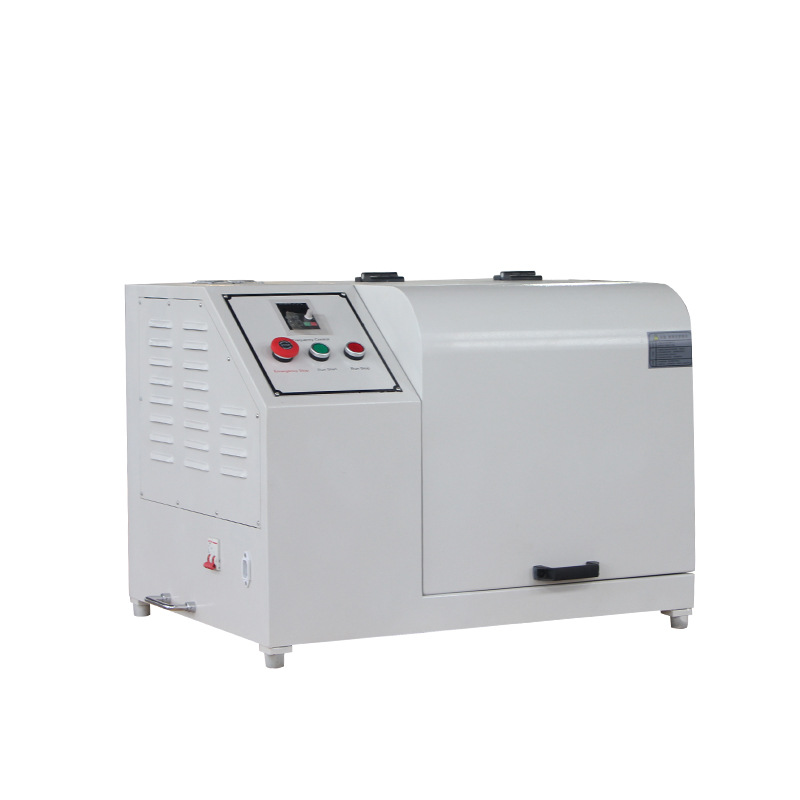

Horizontal light-duty ball mill
A compact horizontal planetary mill for laboratory sample work.
Overview

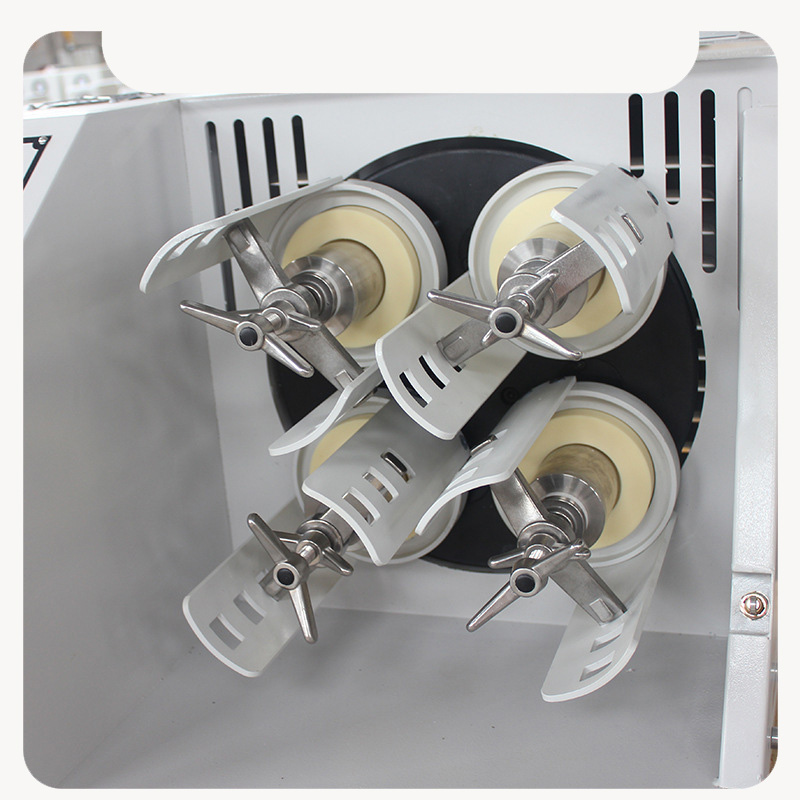

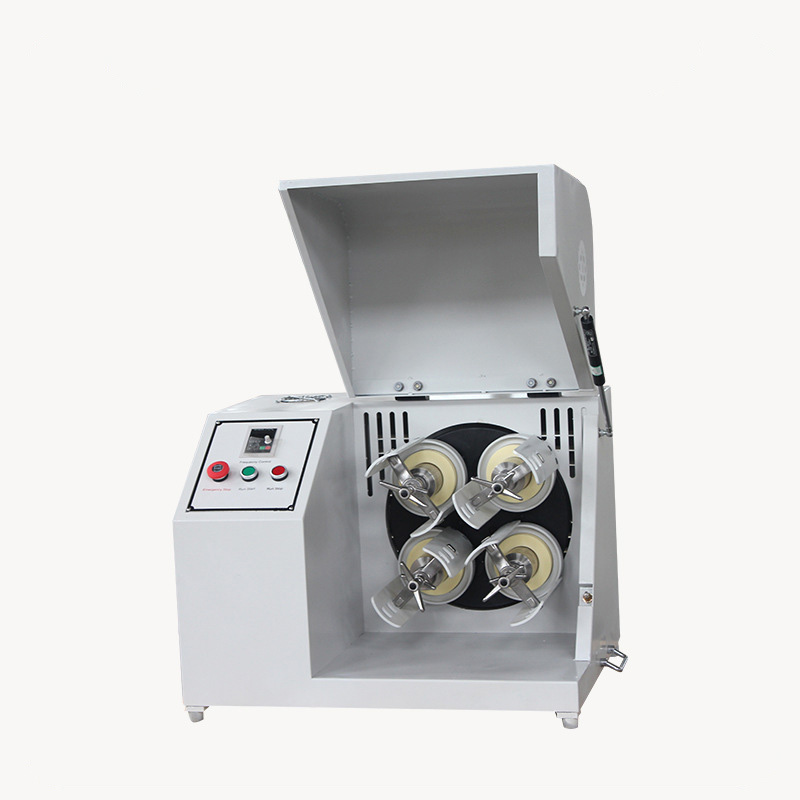

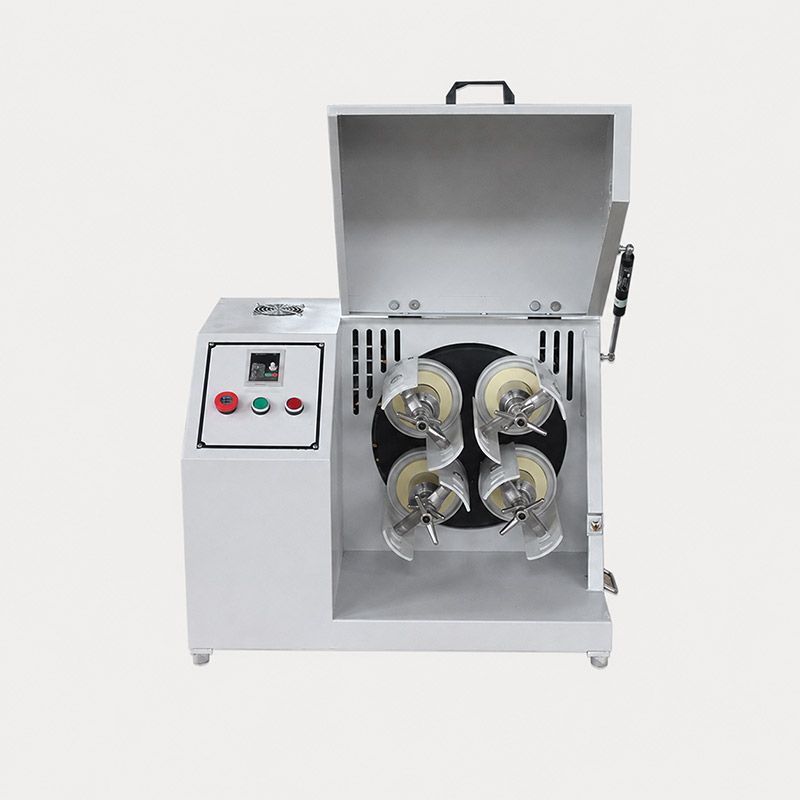

A compact horizontal planetary mill for laboratory sample work. Four horizontally mounted jars operate on a vertically arranged planetary disc, changing how gravity acts on the sample during milling.
How it works
Jar revolution and rotation act together with gravity as the horizontally mounted jars move. This arrangement can help evaluate samples that settle in a vertical configuration, but the result remains material-dependent.
Key features
- Compact WXQM-(2–6) configuration with horizontal jar orientation.
- Its published reference power is 0.75 kW and net mass is 96 kg.
- Compare the heavy-duty horizontal range when higher loaded mass or larger jars are required.
Specifications
Published catalog references are reproduced below. Nominal volume is not a sample-mass rating. Confirm the selected model, material grade, electrical supply and complete supplied configuration in the quotation.
| Model | Jar holder internal diameter (mm) | Motor power | Jar revolution diameter (mm) | Dimensions (mm) | Net mass (kg) |
|---|---|---|---|---|---|
| WXQM-(2-6) | 134 | 0.75kW | Φ234 | 700×560×530 | 96 |
| Item | Published reference |
|---|---|
| Jar positions | 4 |
| Compatible jar-volume reference | 50–1500 mL; confirm the jar envelope and loaded mass |
| Control-panel options | Conventional or touchscreen/PLC proposal; confirm supplied functions |
The model-specific speed schedule must be confirmed; ambiguous source units are not used to define an operating limit.
Applications
Small-batch laboratory grinding, mixing and investigation of settling or nonuniform media movement.
Suitability depends on the actual sample, process and analytical requirements; a listed application is not a guaranteed final-particle-size result.
Accessories and options
Jar materials and control arrangements can be discussed with TENCAN. A cooling or ultrasonic proposal must be checked for this horizontal layout; a universal add-on fit is not assumed.
- Jar and media: confirm material, volume, holder fit and the complete working load.
- Vacuum or gas requirements: specify the complete jar, lid and seal arrangement; no pressure rating is assumed.
- Utilities and supply scope: state voltage, frequency, phase, destination and required documents; confirm included versus optional items.
Compare milling jars · Compare grinding media · Low temperature planetary grinding machines · Ultrasonic planetary ball mills
Selection guidance
Check the loaded jar mass, holder diameter, available installation space and selected drive configuration. A compact machine should not be selected solely from the nominal volume of the jars.
Work through the selection guide · Request a configuration quotation
Trials and comparisons
No identifiable trial of this exact product/configuration was found in the available planetary-milling test summaries. A result from a different mill, jar grade or assistance system is not attributed to this product.
A comparison to request
For a vertical-versus-horizontal comparison, use matched sample portions and record the jar orientation, sample load and media charge. No matched WXQM performance comparison is identified in the available test summaries.
Discuss a sample evaluationProduct FAQs
Can I use the heavy-duty WXQM chart to specify this compact machine?
Use the compact WXQM-(2–6) row for this page. The H-designated and larger entries have different structures, drive powers and masses, and should be quoted as separate configurations.
How should I select the WXQM-(2–6) compact configuration configuration?
Check the loaded jar mass, holder diameter, available installation space and selected drive configuration. A compact machine should not be selected solely from the nominal volume of the jars. Compact WXQM-(2–6) configuration with horizontal jar orientation. Nominal mill capacity is not the usable sample mass; account for media and working space.
Which jars and grinding media should I request for this mill?
The compact WXQM-(2–6) row gives a 134 mm holder internal diameter. Complete jar height and loaded mass still need confirmation. Choose the jar working material and media around sample chemistry and contamination limits; confirm the complete loaded mass.
Are cooling and ultrasonic equipment included?
Jar materials and control arrangements can be discussed with TENCAN. A cooling or ultrasonic proposal must be checked for this horizontal layout; a universal add-on fit is not assumed. Optional equipment is included only when it is explicitly listed in the agreed configuration and quotation.
What trial evidence is available for this mill?
No matching measured trial is identified for Horizontal light-duty ball mill in the available summaries. For a vertical-versus-horizontal comparison, use matched sample portions and record the jar orientation, sample load and media charge. No matched WXQM performance comparison is identified in the available test summaries. A free sample-grinding application can be reviewed by TENCAN engineers.
What should I include in an export quotation request?
Specify WXQM-(2–6) compact configuration, sample and jar requirements, destination, mains voltage, frequency and phase. Check the loaded jar mass, holder diameter, available installation space and selected drive configuration. A compact machine should not be selected solely from the nominal volume of the jars. Confirm included accessories, packing, required documents, commercial terms and lead time in the quotation.
