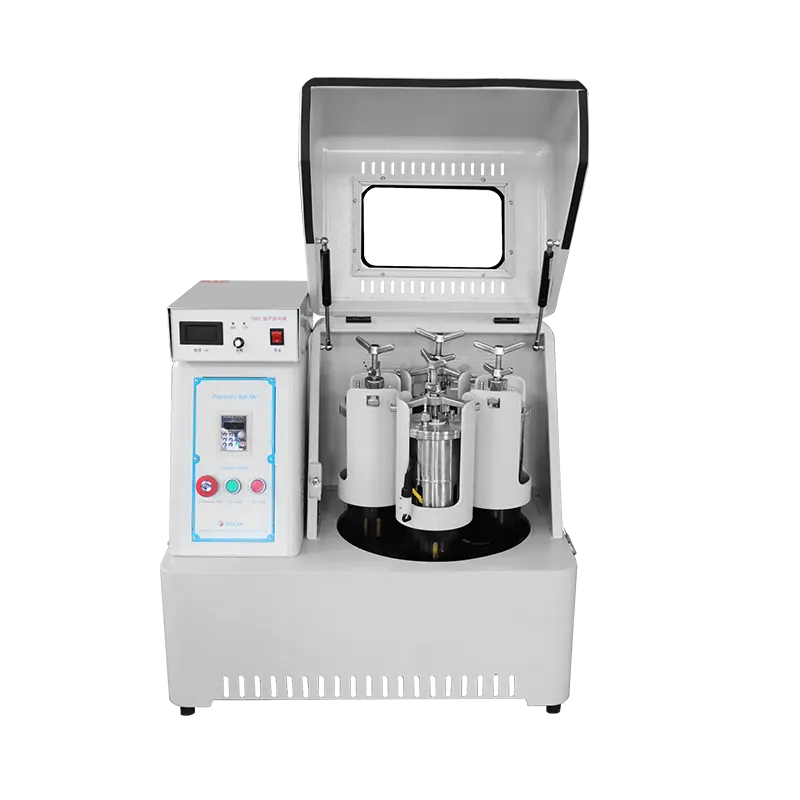

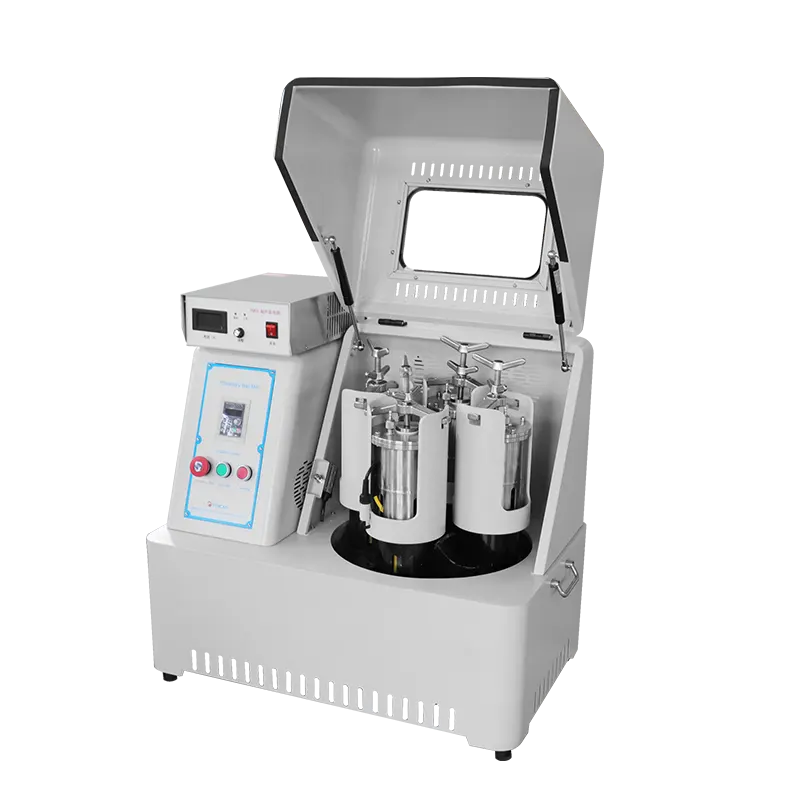

Ultrasonic-Assisted Planetary Ball Mill
A configured planetary milling system with ultrasonic assistance.
Overview
A configured planetary milling system with ultrasonic assistance. It is intended for applications where grinding and dispersion need to be evaluated together, particularly in a suitable liquid process.
How it works
Planetary motion supplies the mechanical grinding action. The added ultrasonic system introduces vibration into the configured process; liquid-mediated cavitation and acoustic streaming should not be described as guaranteed dry-powder effects.
Key features

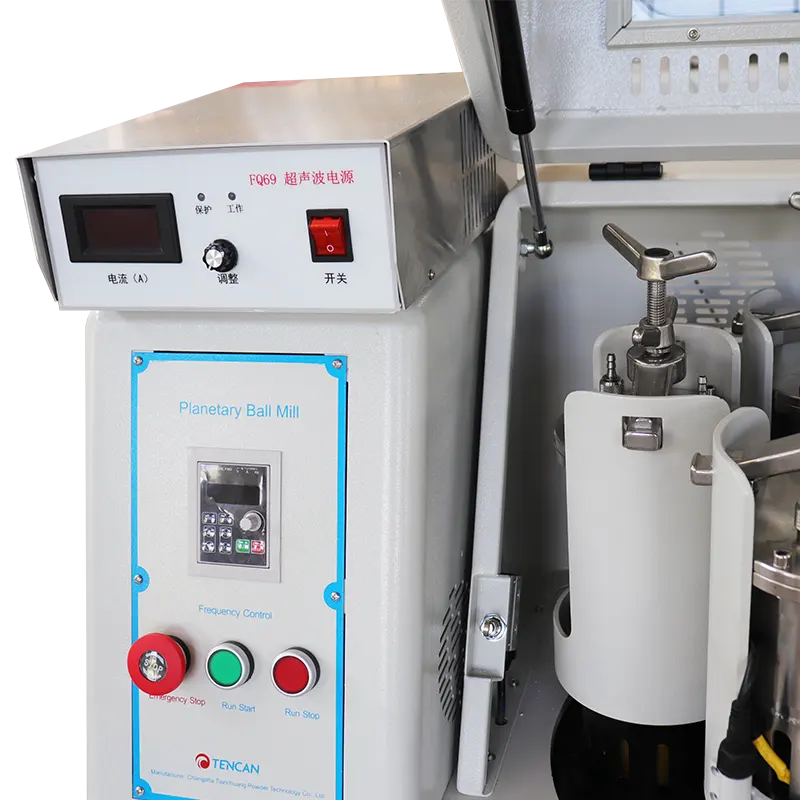

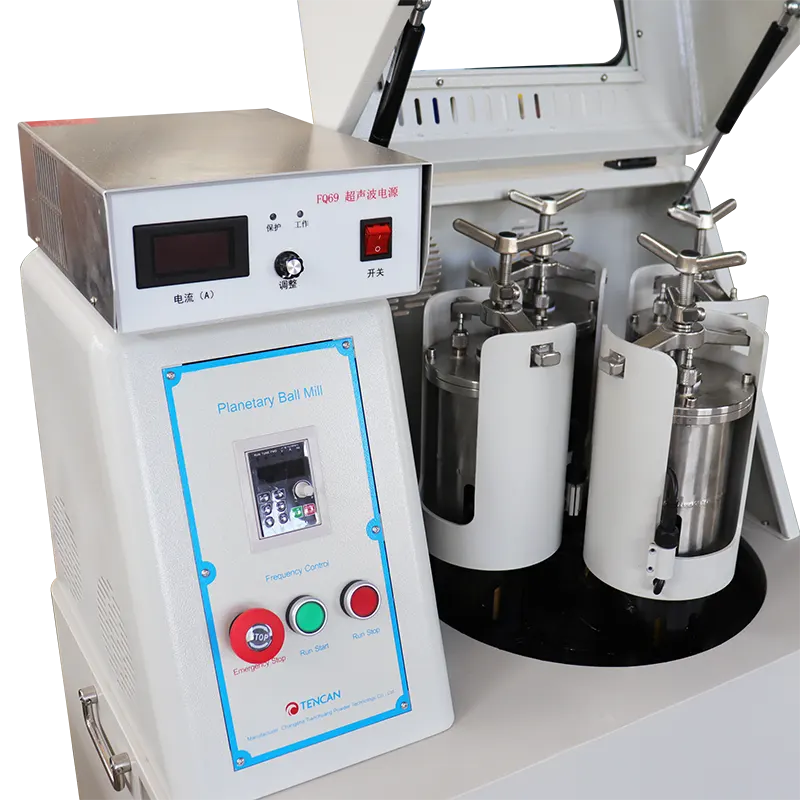

- An integrated proposal combining planetary milling, an ultrasonic generator and a transducer.
- Base-mill dimensions and ultrasonic power/frequency are specified for the selected system.
- Evaluate grinding, dispersion and temperature together in a matched sample test.
Specifications
Published catalog references are reproduced below. Nominal volume is not a sample-mass rating. Confirm the selected model, material grade, electrical supply and complete supplied configuration in the quotation.
| Item | Published reference |
|---|---|
| Grinding mechanism | Planetary milling with an integrated ultrasonic-assistance proposal |
| System components | Generator and transducer; exact fitted arrangement to be confirmed |
| Base-mill drive reference | Gear drive; selected base model to be specified |

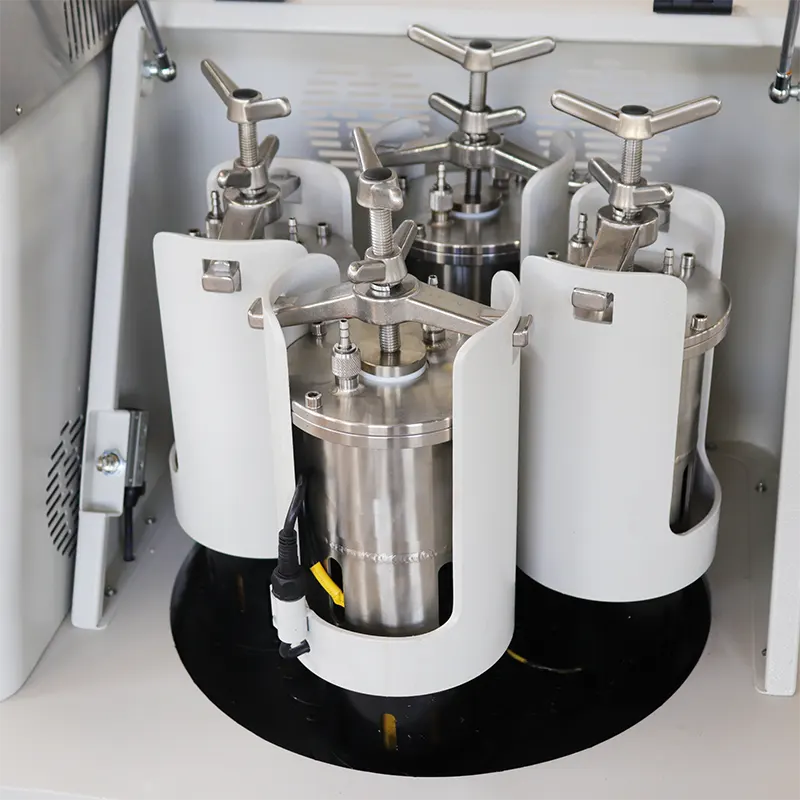

| Jar arrangement reference | Two or four jars, depending on the configuration |
| Published base example | XQM-6; example jar rotation reference 0–670 rpm |
| Ultrasonic power / frequency | Not specified for a delivered configuration; request the actual quotation data |
| Compatible jar / liquid process | Confirm jar, transducer arrangement, sample chemistry and loading |
| Cooling / temperature measurement | Specify as part of the application review |
Applications
Dispersion and deagglomeration studies, ceramic or battery-material suspensions and application-specific powder processing.
Suitability depends on the actual sample, process and analytical requirements; a listed application is not a guaranteed final-particle-size result.
Accessories and options
Discuss the selected base mill, fitted jars, transducer arrangement, ultrasonic controls and cooling needs. Ultrasonic assistance is not presented as a universal retrofit for any jar or mill.
- Jar and media: confirm material, volume, holder fit and the complete working load.
- Vacuum or gas requirements: specify the complete jar, lid and seal arrangement; no pressure rating is assumed.
- Utilities and supply scope: state voltage, frequency, phase, destination and required documents; confirm included versus optional items.
Compare milling jars · Compare grinding media · Air-cooled systems · Ultrasonic-assisted systems
Selection guidance
Provide the liquid, solids loading, viscosity, temperature limit and target measurement. Ask for the actual ultrasonic configuration rather than using generic frequency examples as a delivered specification.
Work through the selection guide · Request a configuration quotation
Trials and comparisons
No identifiable trial of this exact product/configuration was found in the available planetary-milling test summaries. A result from a different mill, jar grade or assistance system is not attributed to this product.
A comparison to request
Request an ultrasound-on/off comparison on the same configured base mill, using matched sample portions, media, loading, temperature logging and analytical methods. Any percentage improvement requires measured results.
Discuss a sample evaluationProduct FAQs
What measured improvement should I expect from ultrasonic assistance?
There is no universal percentage improvement or final fineness. Request a matched assistance-on/off trial with the actual jar, liquid, loading and measurement method. Confirm the ultrasonic hardware and cooling arrangement before comparing results.
How should I select the Ultrasonic-assisted configuration configuration?
Provide the liquid, solids loading, viscosity, temperature limit and target measurement. Ask for the actual ultrasonic configuration rather than using generic frequency examples as a delivered specification. An integrated proposal combining planetary milling, an ultrasonic generator and a transducer. Nominal mill capacity is not the usable sample mass; account for media and working space.
Which jars and grinding media should I request for this mill?
Specify the jar, transducer arrangement, liquid and solids loading together. A standard jar is not automatically compatible with ultrasonic assistance. Choose the jar working material and media around sample chemistry and contamination limits; confirm the complete loaded mass.
Are cooling and ultrasonic equipment included?
Discuss the selected base mill, fitted jars, transducer arrangement, ultrasonic controls and cooling needs. Ultrasonic assistance is not presented as a universal retrofit for any jar or mill. Optional equipment is included only when it is explicitly listed in the agreed configuration and quotation.
What trial evidence is available for this mill?
No matching measured trial is identified for Ultrasonic-Assisted Planetary Ball Mill in the available summaries. Request an ultrasound-on/off comparison on the same configured base mill, using matched sample portions, media, loading, temperature logging and analytical methods. Any percentage improvement requires measured results. A free sample-grinding application can be reviewed by TENCAN engineers.
What should I include in an export quotation request?
Specify Ultrasonic-assisted configuration, sample and jar requirements, destination, mains voltage, frequency and phase. Provide the liquid, solids loading, viscosity, temperature limit and target measurement. Ask for the actual ultrasonic configuration rather than using generic frequency examples as a delivered specification. Confirm included accessories, packing, required documents, commercial terms and lead time in the quotation.
Start with your sample.
Nominal capacity, jar volume and usable sample load are different. Confirm the model, jars and electrical requirements with our engineers.
